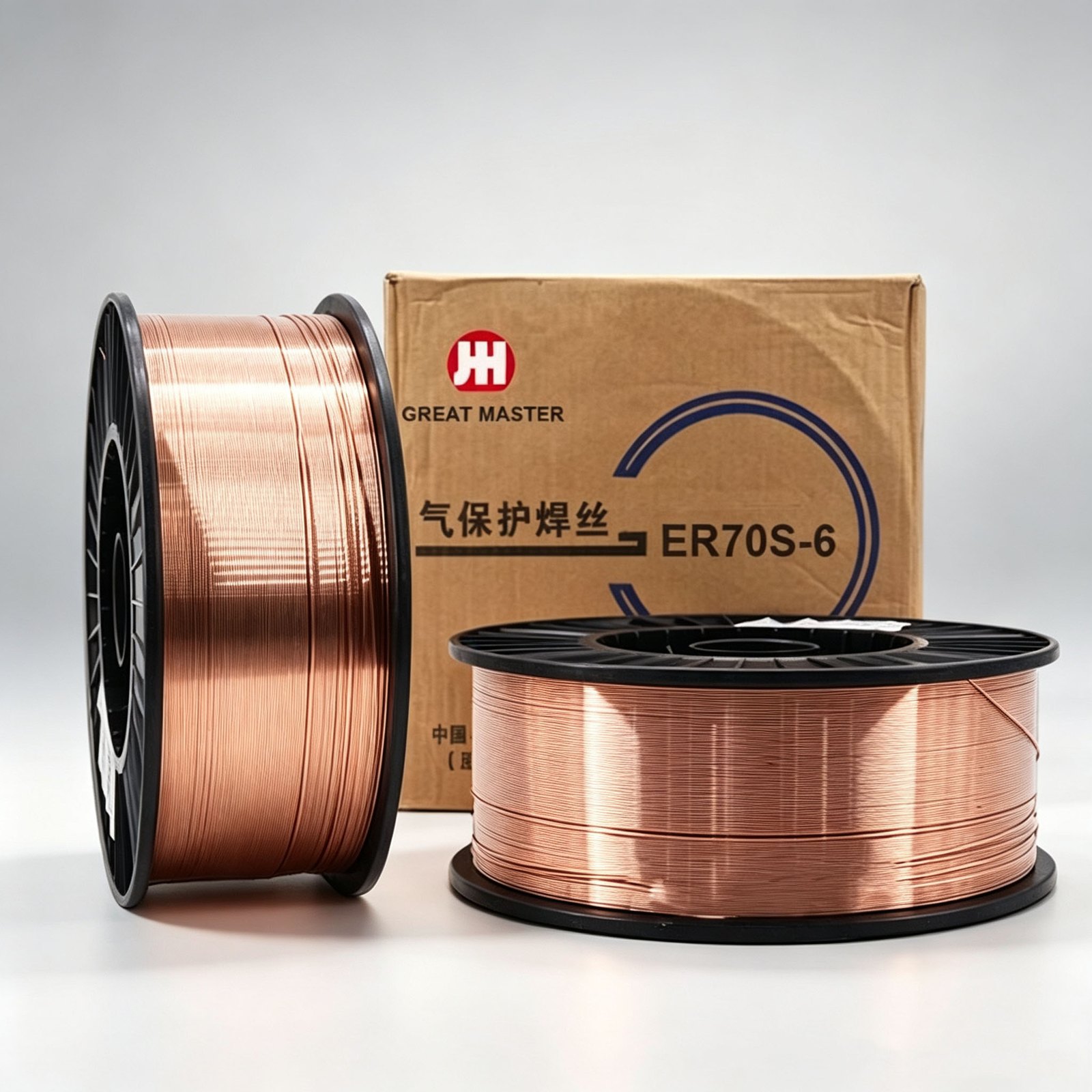

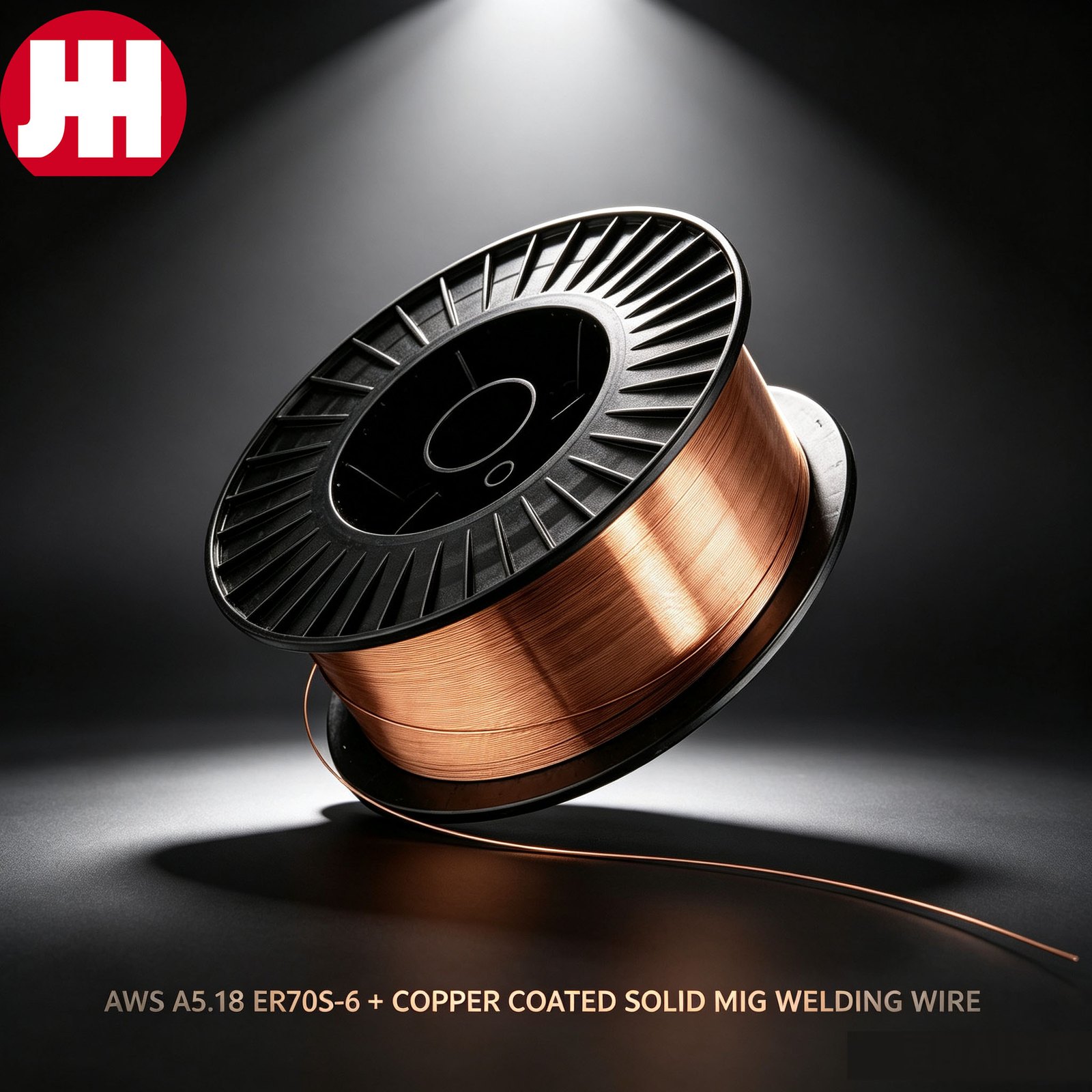

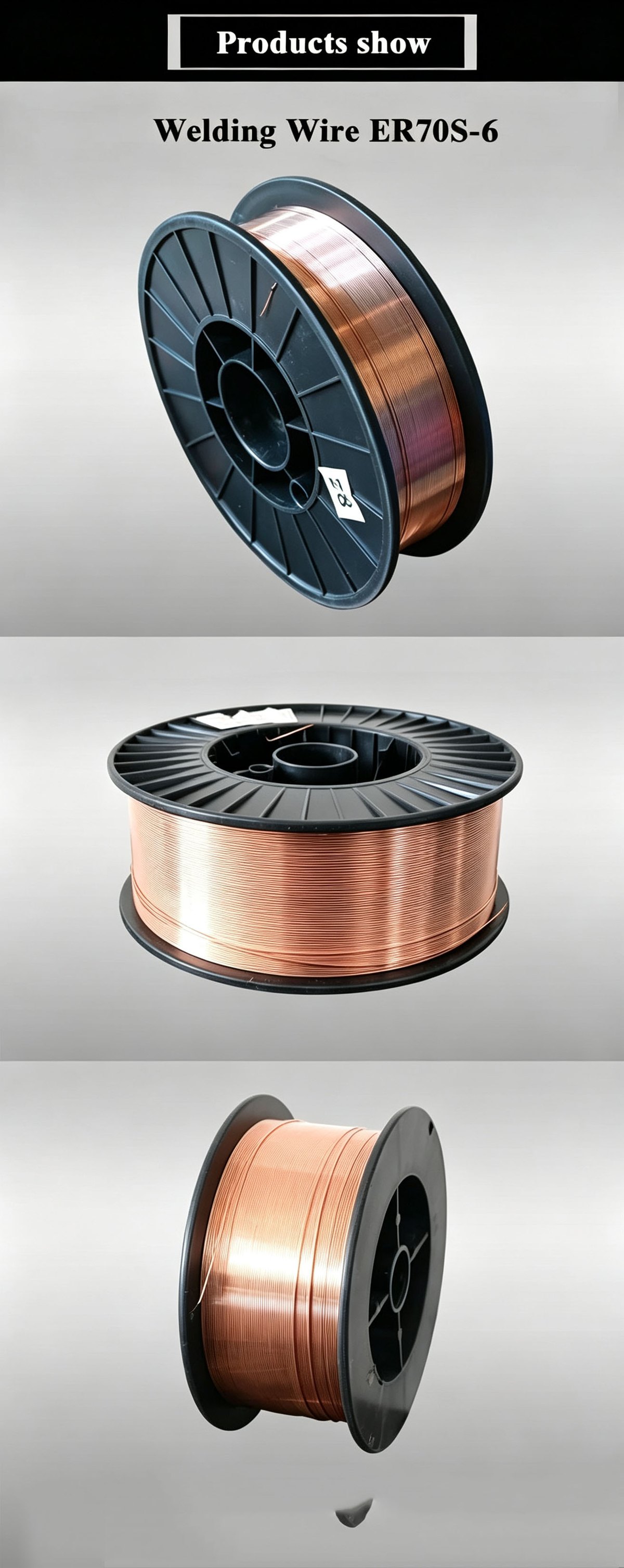

ER70S-6 Copper-Coated MIG Welding Wire
Copper-coated carbon steel solid wire to AWS A5.18 ER70S-6.
Status
Datasheet available on request
Description
Copper-coated carbon steel solid wire to AWS A5.18 ER70S-6.

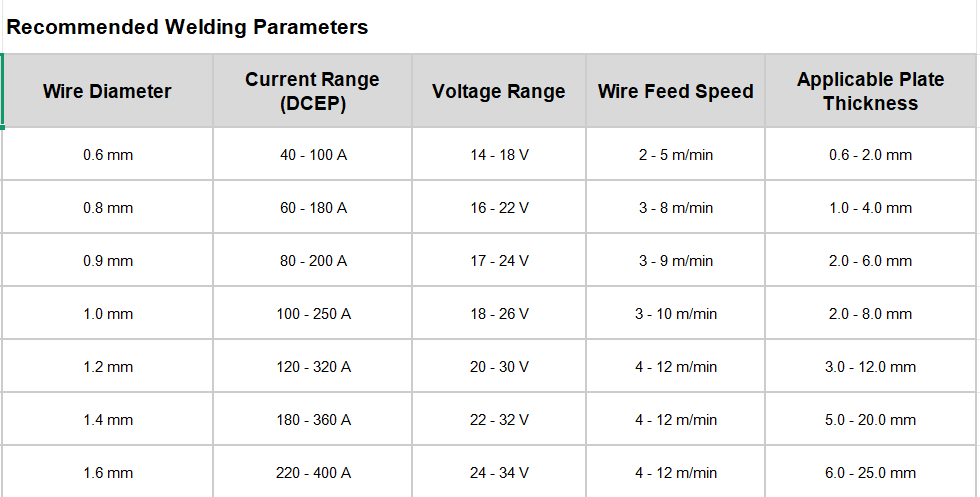

Welding positions, current range, deposition data and procedure notes are provided with the datasheet. Ask us for the grade you are specifying.
- Material
- Carbon Steel
- Diameter
- 0.6mm, 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.4mm, 1.6mm
- Flux content
- No flux / 0%
- Melting point
- 1515℃(2727℉)
- Elongation
- ≥ 22%
- Weight

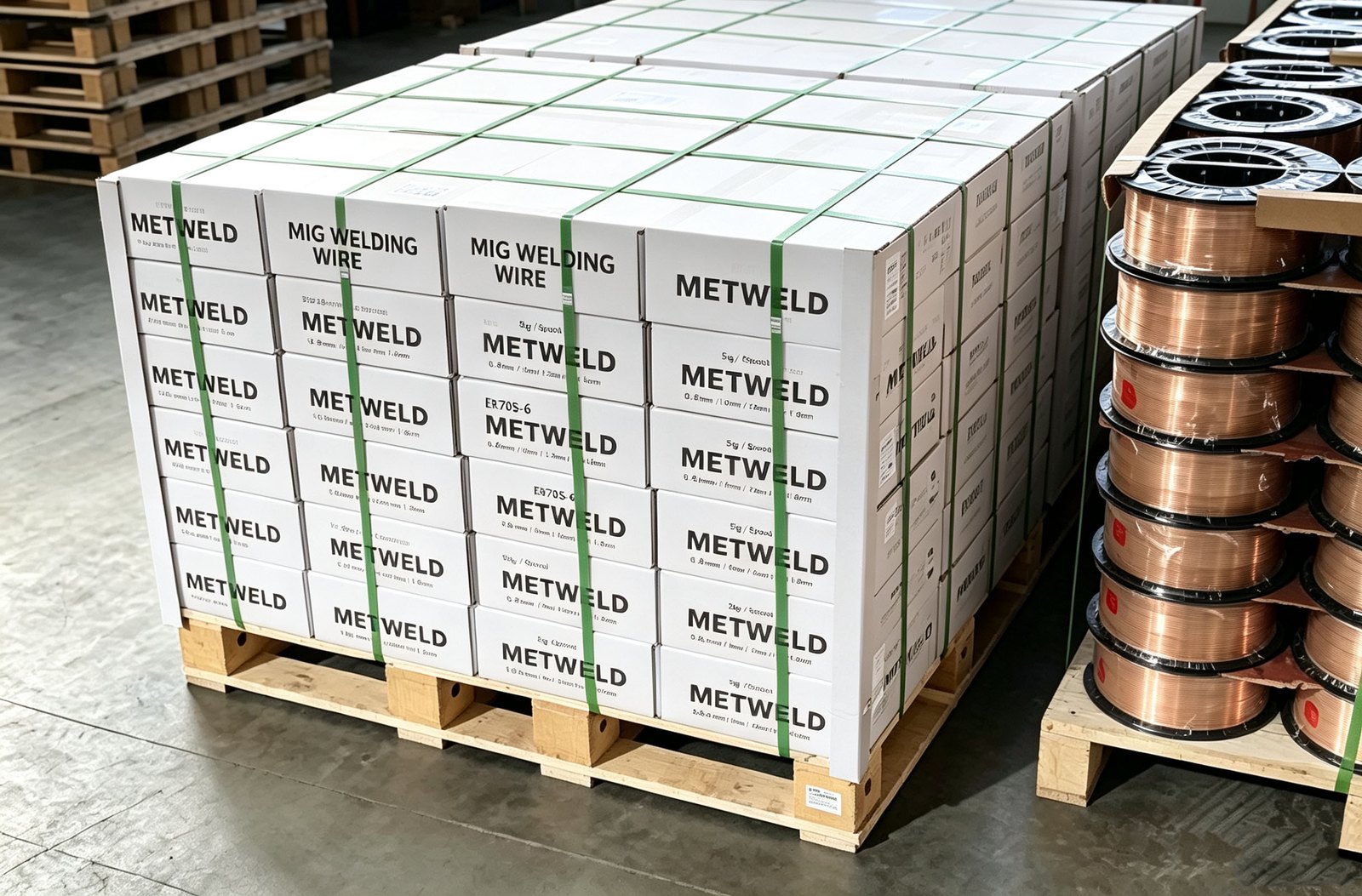

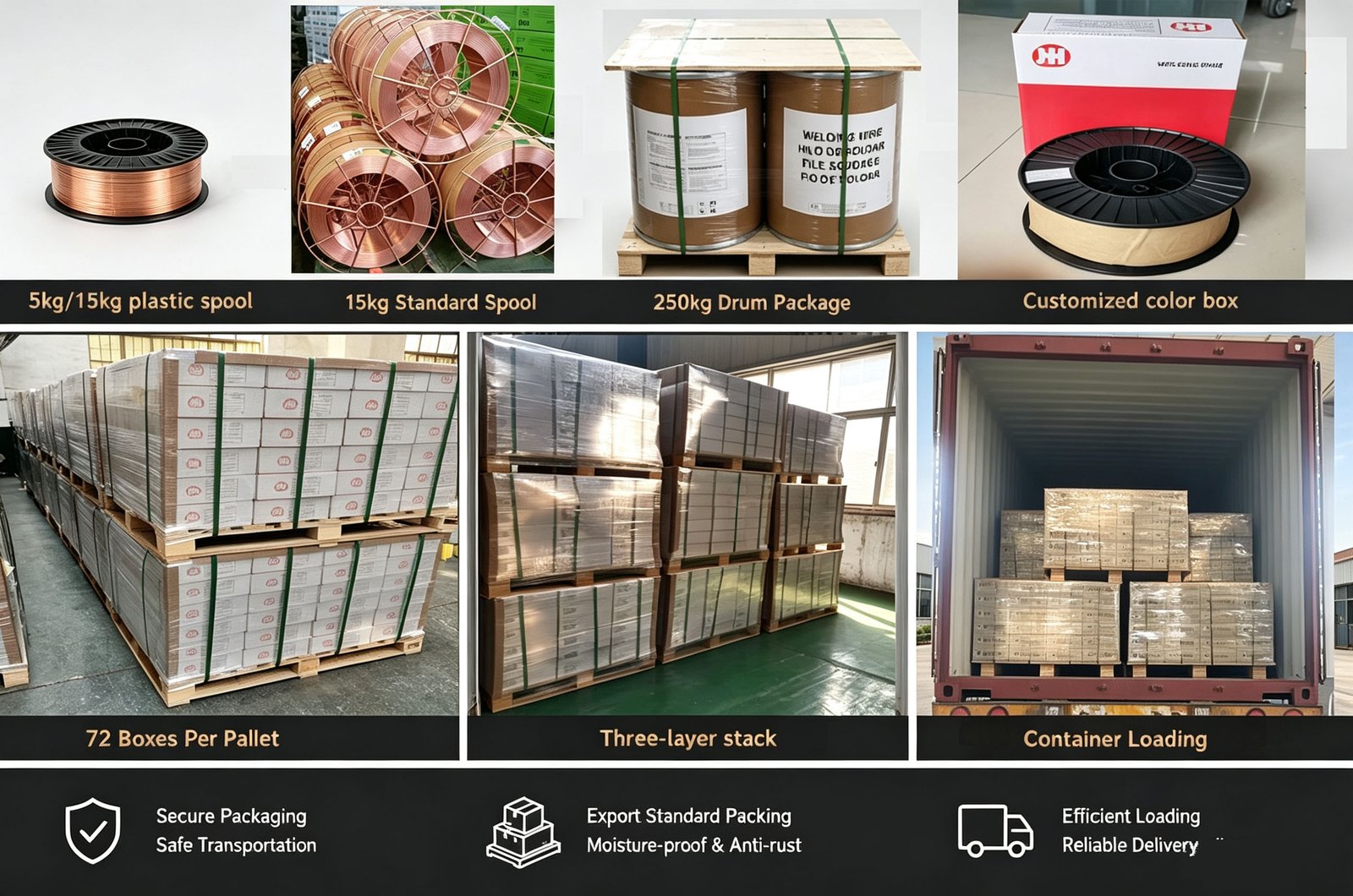

- 5kg, 15kg, 250kg (drum)
- Form / model
- AWS A5.18 ER70S-6
- Tensile strength
- ≥ 480 MPa (≥ 70,000 psi)
- Yield strength
- ≥ 400 MPa (≥ 58,000 psi)
- Welding process
- GMAW (MIG/MAG) - Gas Metal Arc Welding
- Wire type
- Solid Wire (not Flux-Cored)
- Coating
- Copper Coated
- Polarity
- DCEP (DC+)
- Impact toughness
- ≥ 47 J @ -30°C
- Standard
- AWS A5.18 ER70S-6, ASME SFA-5.18, EN ISO 14341-A G 42 4 C
- MOQ
- 3,000 kg
- Selling unit
- Single item
- Single gross weight
- 2.0 kg
- Single package size
- 50X50X10 cm
Lead time
- 1 - 1,000
- 15 days
- 1,001 - 50,000
- 31 days
- > 50,000
- To be negotiated days
