E7016 Low-Hydrogen Welding Electrode
E7016 is a low-hydrogen electrode supplied to AWS A5.1, running on DC and used for all-position welding of carbon steel. It differs from E7018 in coating and in how it behaves at the arc: the potassium-bearing low-hydrogen coating gives a stable, easy-restriking arc in every position, which is why it appears on pipe and structural work that cannot be rotated.
Status
Datasheet available on request















Description
Low-hydrogen electrode for all-position work.
Welding positions, current range, deposition data and procedure notes are provided with the datasheet. Ask us for the grade you are specifying.
- Length
- 350 mm / 400 mm / 450 mm
- Packing
- 5kg/box
- Standard
- AWS A5.1 (E7016)
- Application
- All position welding
- Material
- low hydrogen potassium carbon steel
- Form / model
- E7016
- MOQ
- 3 Tons
- Selling unit
- Single item
- Single gross weight
- 2.0 kg
- Single package size
- 40X20X10 cm
Lead time
- 1 - 100,000
- 31 days
- > 100,000
- To be negotiated days
What international standards does this E7016 electrode comply with?

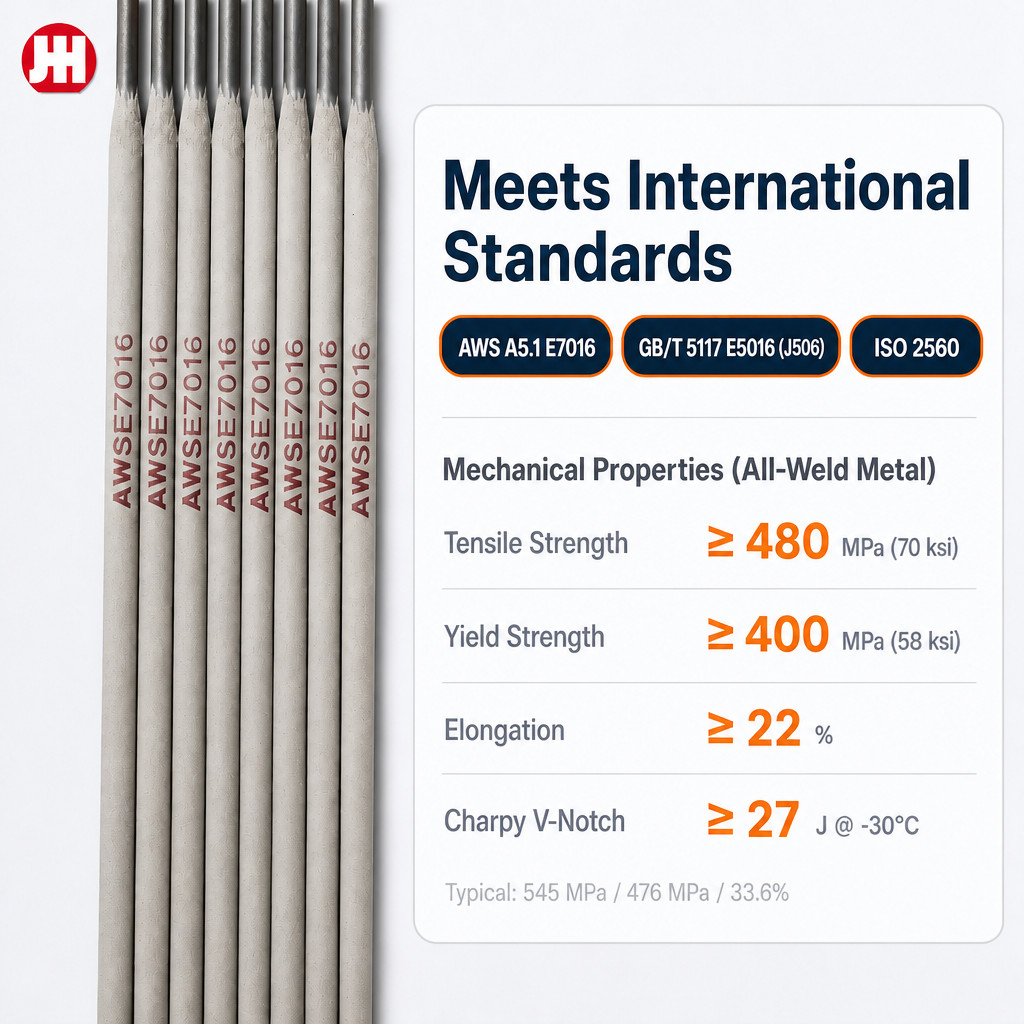

This electrode conforms to AWS A5.1 E7016 (American) and GB/T 5117 J506 (Chinese national standard). It is also compatible with ISO 2560-A E 42 4 B 12 H5 classification.
What are the key mechanical properties of the weld metal?
In the as-welded condition, the weld deposit meets AWS A5.1 minimum requirements: tensile strength 70 ksi (480 MPa) minimum, yield strength 58 ksi (400 MPa) minimum, and elongation of at least 22%. Our typical test data shows tensile strength of approximately 540 MPa and elongation of ~30%, exceeding standard minimums.
What welding positions is this electrode suitable for?
E7016 is classified for all welding positions, including flat (1G/1F), horizontal (2G/2F), vertical (3G/3F - upward progression recommended), and overhead (4G/4F). Its basic coating provides excellent slag control and bead shape across all positions, making it highly versatile for structural fabrication where joint access varies.
What polarity and current settings are recommended?
E7016 is designed for DC DCEP Direct Current Electrode Positive and is also compatible with AC power sources providing wider machine compatibility compared with E7015. Recommended welding current ranges by diameter 2.5mm 60 to 90A 3.2mm 90 to 130A 4.0mm 130 to 180A 5.0mm 180 to 240A Please confirm based on your product datasheet. Always keep electrodes dry before use and preheat thick sections above 20 mm when required.
How should E7016 electrodes be stored and handled to prevent moisture?

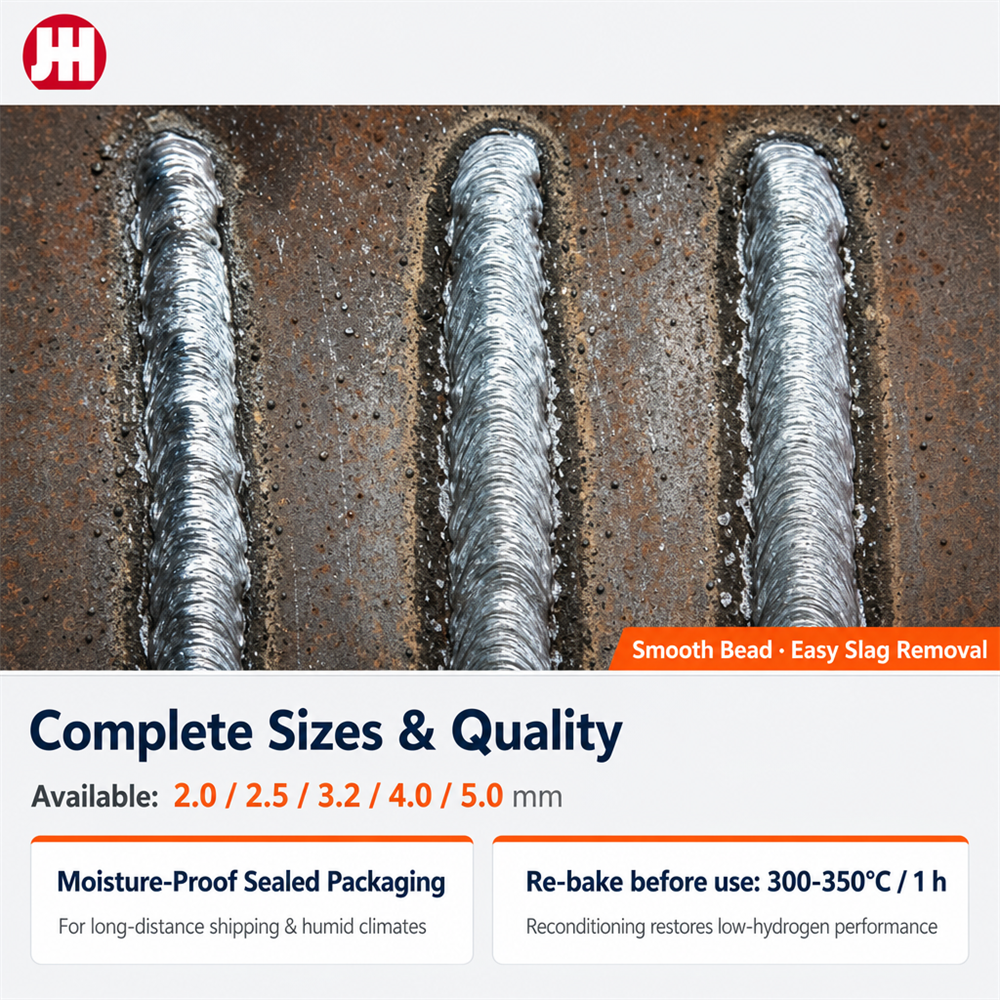

As a low hydrogen electrode E7016 is highly sensitive to moisture. Electrodes must be stored in a dry environment at temperatures between 10 and 40C and relative humidity below 60 percent. Before use re dry electrodes in an oven at 300 to 350C for 1 to 2 hours if they have been exposed to ambient air for more than 4 hours or according to your product specification. Use a portable rod oven or heated quiver on site to maintain dryness during welding operations.
What industries and base materials is this electrode designed for?
E7016 is primarily used for shielded metal arc welding (SMAW) of low-carbon steel and low-alloy structural steel with tensile strength up to approximately 490 MPa. Typical applications include shipbuilding (hull and deck structures), bridge and offshore steel construction, pressure vessel fabrication, pipeline welding, and heavy structural steel erection. It is not recommended for austenitic stainless steel or non-ferrous metals.
