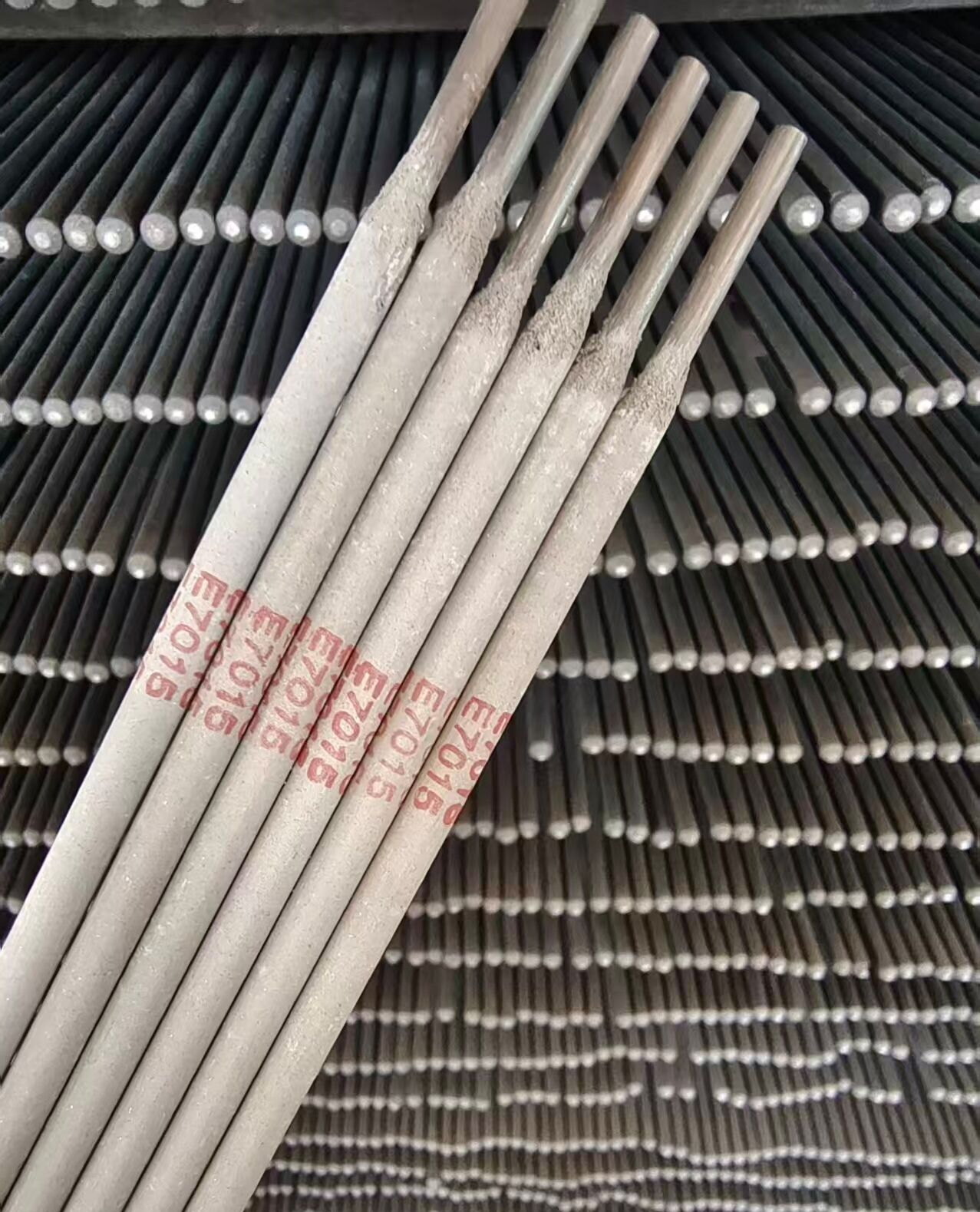

E7015 Low-Hydrogen Welding Electrode
E7015 is a low-hydrogen electrode supplied to AWS A5.1 for carbon steel welding, running on DC only. It is the direct-current counterpart of E7016: same low-hydrogen coating family and the same all-position behaviour, but the coating is formulated for DC rather than for AC-or-DC operation. It is chosen where only DC plant is available.
Status
Datasheet available on request











Description
Low-hydrogen electrode for all-position work.
Welding positions, current range, deposition data and procedure notes are provided with the datasheet. Ask us for the grade you are specifying.
- Material
- Carbon steel
- Form / model
- e7015
- Packing
- 5kg/box
- Application
- Carbon Steel Welding
- Welding current
- DC
- MOQ
- 3tons
- Selling unit
- Single item
- Single gross weight
- 1.100 kg
- Single package size
- 80X90X85 cm
Lead time
- 1 - 3
- 20 days
- 4 - 25
- 30 days
- > 25
- To be negotiated days
What is E7015?
A low-hydrogen carbon steel electrode for structural steel, classified E7015 to AWS A5.1. The coating is the sodium type, which is what the "15" in the classification indicates.
What polarity does it run on?
DC. It is listed with a DC operating current.
What sizes and packing do you supply?
2.5 mm and 3.2 mm, drawn to a diameter tolerance of ±0.05 mm. Packed 5 kg to a box, 20 kg to a carton.
