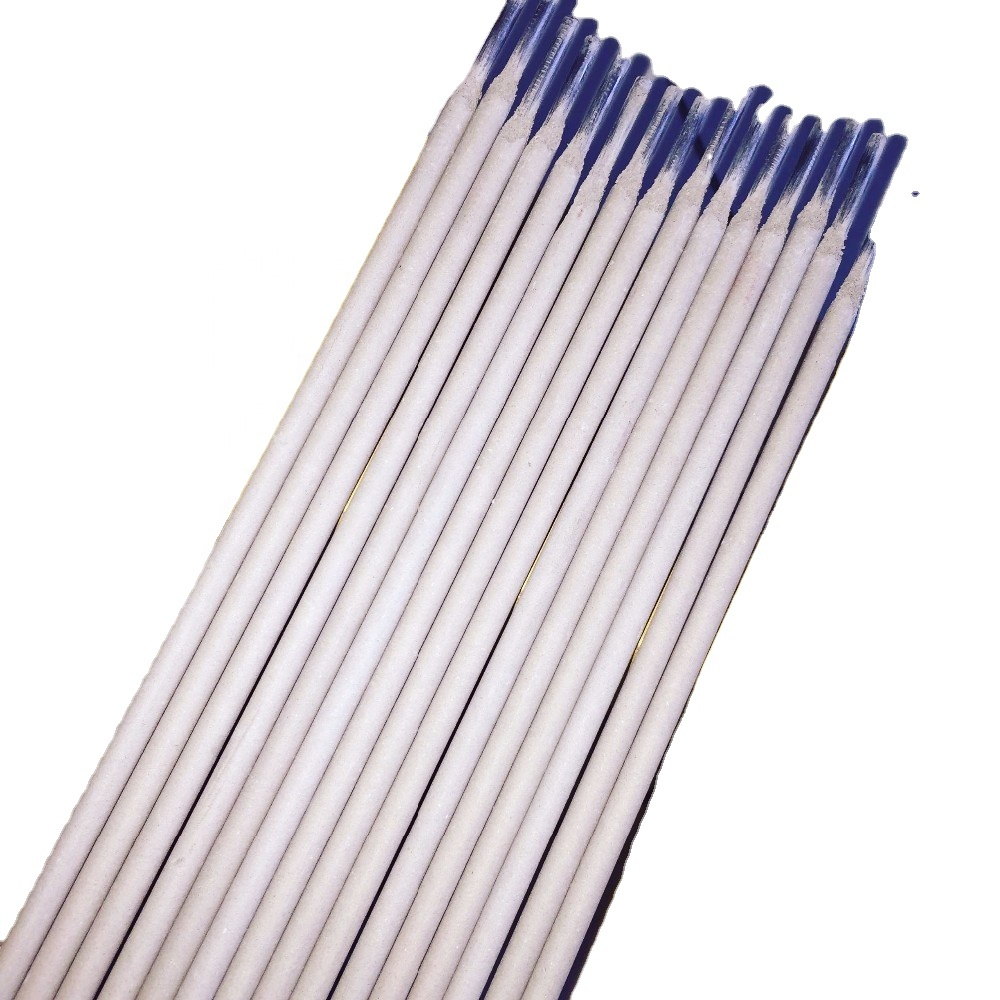

E4313 General Purpose Welding Electrode
E4313 is a general-purpose rutile electrode supplied under the Chinese GB/T 5117 designation, broadly equivalent to AWS A5.1 E6013. It is used on low-carbon steel structures and covers the same everyday work as E6013 — general fabrication, sheet, repairs — with the designation written to the GB standard rather than the AWS one.
Status
Datasheet available on request











Description
General-purpose electrode, GB/T 5117 E4313 designation.
Welding positions, current range, deposition data and procedure notes are provided with the datasheet. Ask us for the grade you are specifying.
- Standard
- GB/T 5117 E4313 (≈ AWS A5.1 E6013)
- Packing
- 5kg/box
- Material
- Carbon steel
- Application
- Low Carbon Steel Structure
- MOQ
- 5 Tons
- Selling unit
- Single item
- Single gross weight
- 2.0 kg
- Single package size
- 40X15X15 cm
Lead time
- 1 - 100,000
- 20 days
- > 100,000
- To be negotiated days
What is E4313?
A general-purpose carbon steel electrode, designated E4313 to GB/T 5117. The coating is the high-titania potassium type.
Which AWS grade is it equivalent to?
It corresponds to AWS A5.1 E6013. The two share the titania coating type and the same general-purpose role.
Which current and positions can it be used on?
AC or DC, in all positions.
Which packing and minimum order do you supply?
5 kg to a box, with a minimum order of 5 tonnes.
